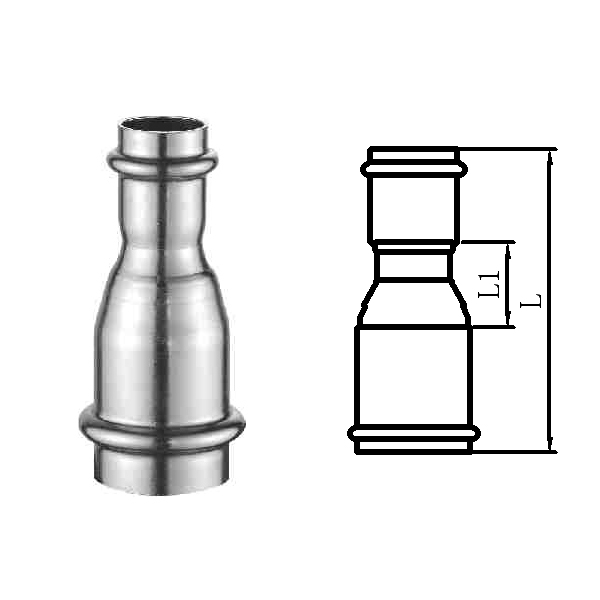

异径对接
| 规格型号 | 产品外径（mm) | L | L1(D) | L2(H) |
| DN20*15 | 20.00*16.00 | 73 | 21 | |
| DN25*15 | 25.40*16.00 | 89 | 22 | |
| DN25*20 | 25.40*20.00 | 84 | 22 | |
| DN32*15 | 32.00*16.00 | 130 | 54 | |
| DN32*20 | 32.00*20.00 | 96 | 26 | |
| DN32*25 | 32.00*25.40 | 96 | 29 | |
| DN40*15 | 40.00*16.00 | 160 | 76 | |
| DN40*20 | 40.00*20.00 | 152 | 64 | |
| DN40*25 | 40.00*25.40 | 146 | 54 | |
| DN40*32 | 40.00*32.00 | 121 | 32 | |
| DN50*15 | 50.80*16.00 | 188 | 98 | |
| DN50*20 | 50.80*20.00 | 178 | 84 | |
| DN50*25 | 50.80*25.40 | 170 | 72 | |
| DN50*32 | 50.80*32.00 | 138 | 41 | |
| DN50*40 | 50.80*40.00 | 142 | 34 | |
| DN60*15 | 63.50*16.00 | |||
| DN60*20 | 63.50*20.00 | |||
| DN60*25 | 63.50*25.40 | |||
| DN60*32 | 63.50*32.00 | |||
| DN60*40 | 63.50*40.00 | |||
| DN60*50 | 63.50*50.80 | |||
| DN65*20 | 76.10*20.40 | |||
| DN65*25 | 76.10*25.00 | |||
| DN65*32 | 76.10*32.00 | |||
| DN65*40 | 76.10*40.80 | |||
| DN65*50 | 76.10*50.80 | |||
| DN65*60 | 76.10*63.50 | |||
| DN80*15 | 88.90*16.00 | |||
| DN80*20 | 88.90*20.00 | |||
| DN80*25 | 88.90*25.40 | |||
| DN80*32 | 88.90*32.00 | |||
| DN80*40 | 88.90*40.00 | |||
| DN80*50 | 88.90*50.80 | |||
| DN80*60 | 88.90*63.50 | |||
| DN80*65 | 88.90*76.10 | |||
| DN100*15 | 101.60*16.00 | |||
| DN100*20 | 101.60*20.00 | |||
| DN100*25 | 101.60*25.40 | |||
| DN100*32 | 101.60*32.00 | |||
| DN100*40 | 101.60*40.00 | |||
| DN100*50 | 101.60*50.80 | |||
| DN100*60 | 101.60*63.50 | |||
| DN100*65 | 101.60*76.10 | |||
| DN100*80 | 101.60*88.90 |
